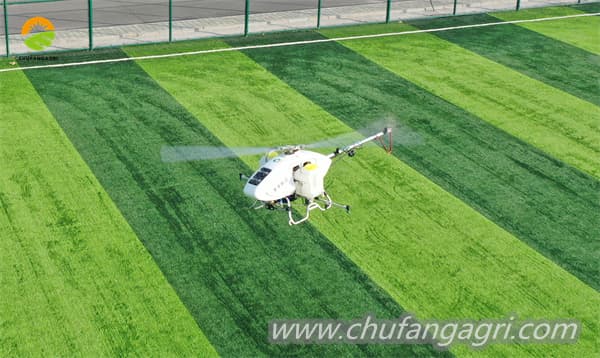

The new generation of agricultural plant protection drone T2000
Since 2012, we have been specialized in developing agricultural plant protection drones.We have developed and produced single-rotor unmanned helicopter and multi-rotor intelligent suspended plant protection drone with independent intellectual property rights and international advanced technology. QF T2000 (26L) is one of our latest generation of highly configured drone series.
Its characteristics: easy to carry, especially suitable for precise spraying of pesticides in plots.
Basic parameters
Loads:26L
Machine weight:68KG
Spraying area per 2.5 liters of gasoline:15-18 acres
Operation mode: Manual mode;AB point mode;Fully autonomous spraying mode
Suitable for spraying crops: Any plant
Working hours: 24 hours
T2000 spraying helicopter is our company’s excellent work with five-year’s R&D. It has the advantages of long endurance, high efficiency and easy maintenance ,etc. It is a powerful tool for your plant protection work .
It is easy to operate because of many advanced functions with it, such as autonomous flight, break point return , obstacle avoidance , etc.
The Main Parameter：
| Main Parameter | |
| Item | Index |
| Dimensions（L*W*H） | 220*62*72cm |
| Net weight | 36kg |
| Max Take-off weight | 68kg |
| Payload | 26kg |
| Fuel Tank Volume | 2.5L |
| The Diameter Of Main Propeller | 250cm |
| The Diameter Of Back Propeller | 47cm |
| The Material Of Main Propeller | Carbon Fiber |
| The Material Of Drone Body | Aluminium alloy |
| The Temperature For Application | -20℃-40℃ |
| Durable Time | ≥60 min |
| Plant Protection Parameter | |
| Item | Index |
| The Length Of Spraying Rod | 140cm |
| The Spraying Height(above crop) | 1-3m |
| The Nozzle Number | 6PCS |
| The Spraying Flow rate | 3.0-4.5L/min |
| The Agrochemical Tank Volume | 26L |
| Spraying Width | 8m |
| Spraying efficiency | 15 hectare/hour |
| Power System | |
| Item | Index |
| The Engine Type | Two cylinder two stroke gasoline engine |
| Engine displacement | 170cc |
| Fuel | Gasoline engine oil mixture (50：1) |
| Cooling Mode | Water Cooling |
| Starting Mode | Electric Starting |
| Fuel Consumption | ≤4L/hour |
| Control System | |
| Item | Parameter |
| Remote Controller Channel | 14 channels |
| The Control Distance Of the Controller | 2000m |
| Flight Control Mode | Autonomous/Manual |
| Positioning Mode | GPS/RTK |
| The Height-control Radar | Millimeter wave radar |
It is made up of five main modules（power system, flight control system, spraying system, etc,）,if there is some problem with one certain module, we just need to offer maintenance to the it. So the maintenance is easy.
The power system, we manufacture the helicopter engine by our own plant. So we can offer spare parts for our partner on time.
The agriculture chemical tank can be removed and assembled easily and quickly to improve the total spraying efficiency.
The flight control system, there are manual mode and automatic mode for choice.
The structured design of the main parts, which can simplify the maintenance process.
