Professional farming agriculture drone
HENAN CHUFANG AGRICULTURE IMPORT&EXPORT CO., LTD.is Chinese leading integrated agriculture service provider. Relying on our 20 years of experience and resources in the agriculture chemical industry, agriculture drone, and agriculture service, we are committed to providing one-stop integrated agriculture service for our global partners.

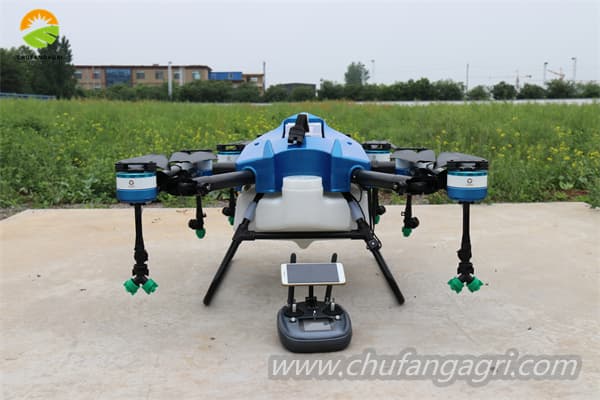

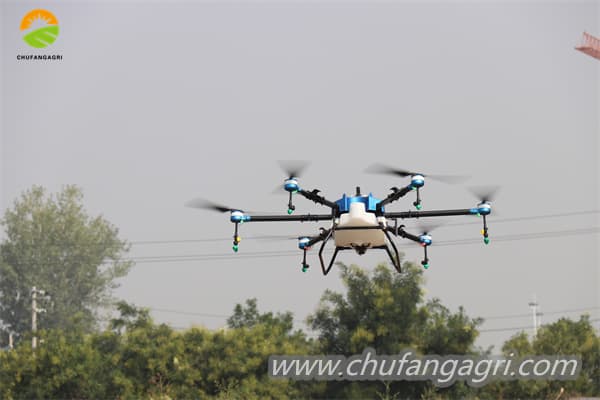

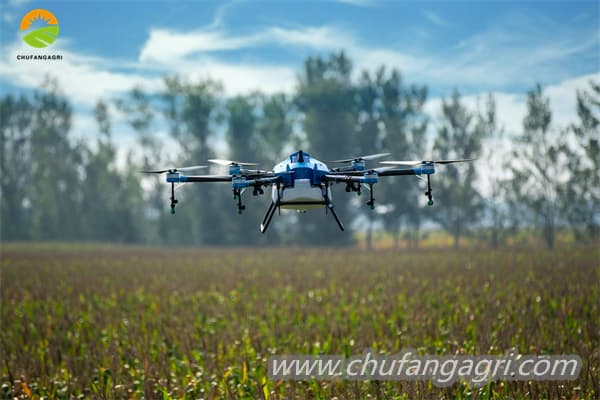

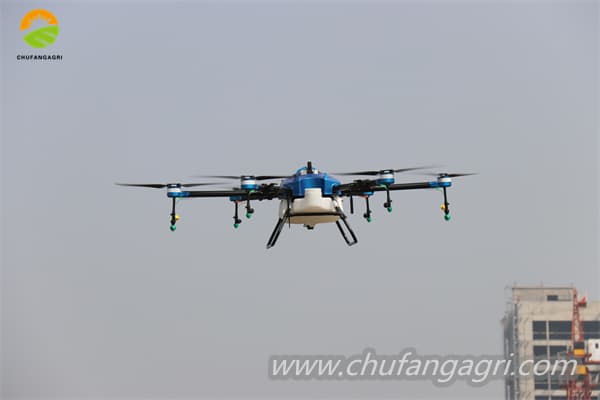

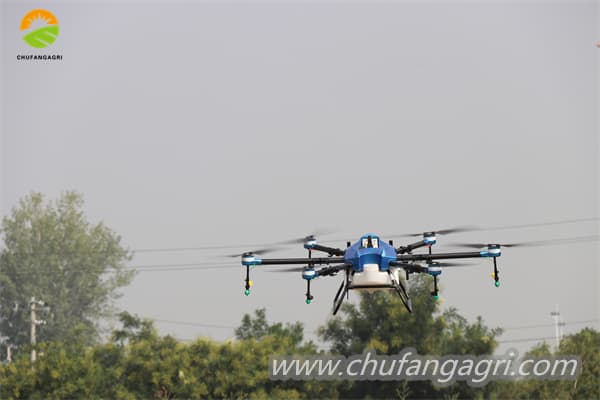

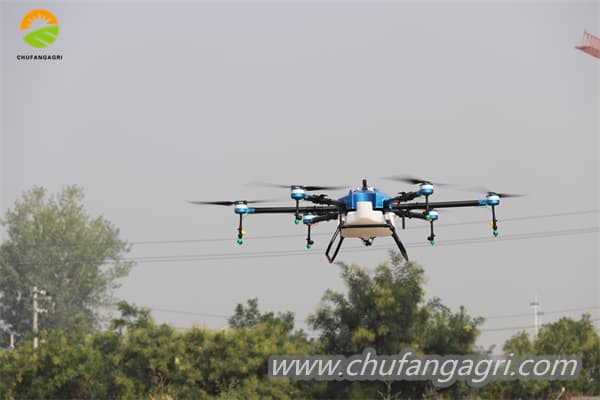

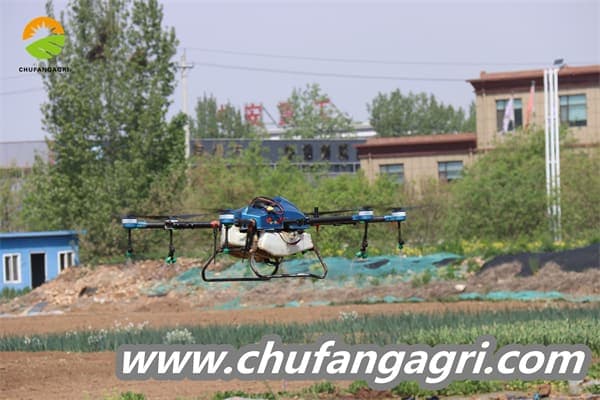

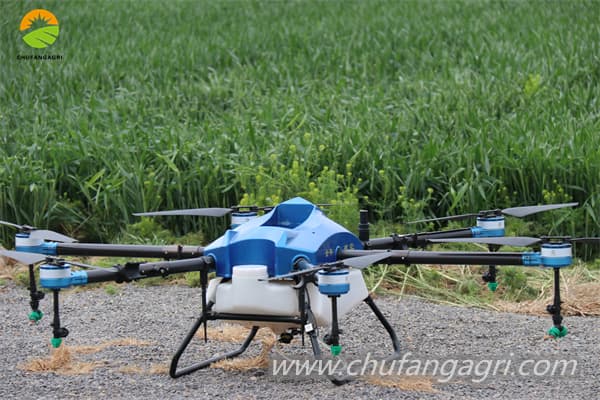

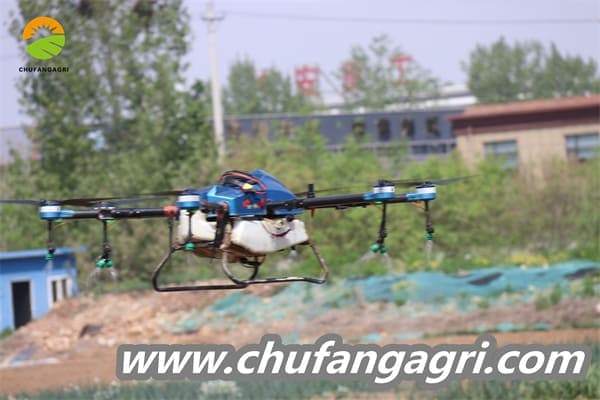

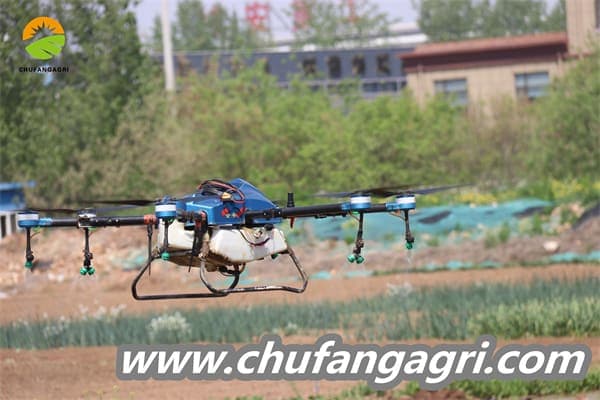

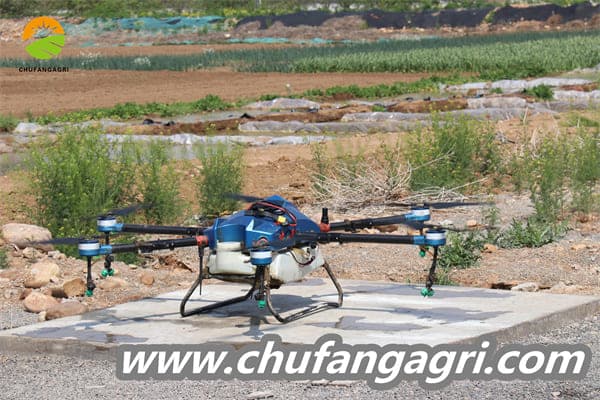

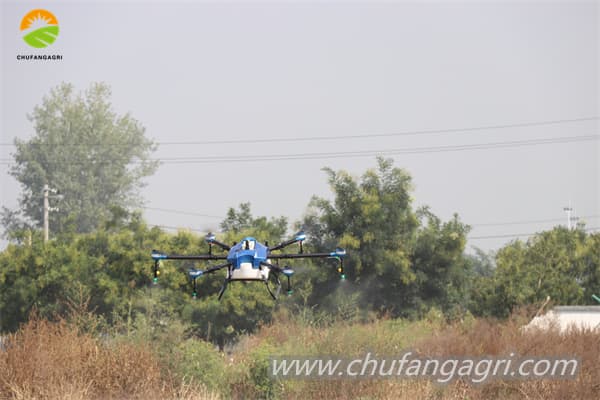

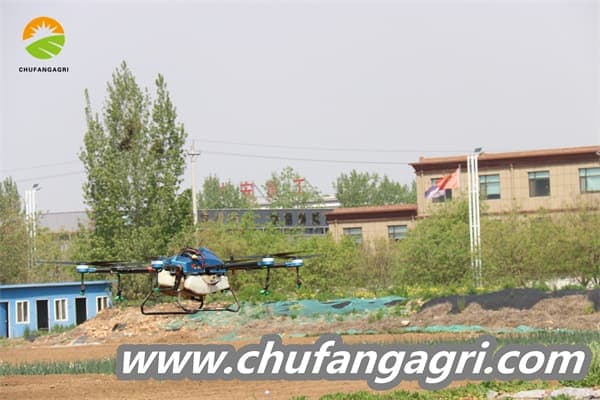

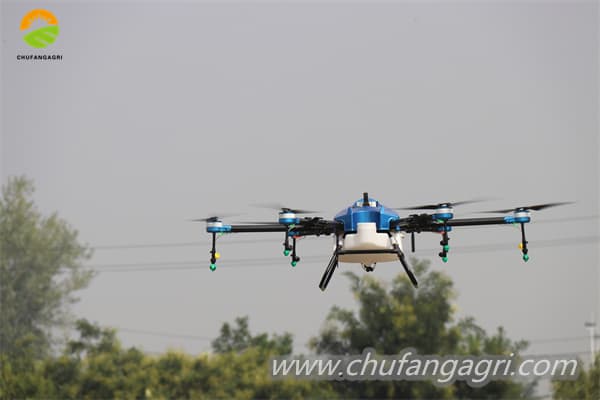

The Free Eagle DP electric drone is one of our main products, which has the characteristics of long endurance, high efficiency, easy operation, convenient maintenance, good anti-collision performance, high cost performance and has won the favor of all customers.
1、The Main Parameter:
The loading weight: 42KG
Wheelbase：1724mm
Dimension: 2485mm*2255mm*850mm
Endurance Time：15min
Tank Volume：18L
Spray Height:1-3m
Spray Width: 5.5-6.5m
Spray flow:3-5L/min
Spraying efficiency: 11-15acres/hour
1. Updated flight control system , which makes the drone performance excellent:
（1）4 core CPU with excellent performance, so the DP drone has a strong “core”.
（2） Triple redundant IMU, double redundant barometer, in case single hardware breaks, the drone can still work.
（3） Dual shock absorber structure with better seismic resistance, which makes the drone cope with complex vibration environment, even if the frame
ages, it will still work stably and reduce the maintenance cost.
2. RTK High Precision Location: RTK
3. The drone is equipped with auto obstacle avoidance radar which assures flight safety:
The DP drone is equipped with millimeter wave radar that has high sensitivity and long detection distance , it can identify obstacles beyond 20 meters, which
assure the safe and reliable flight. Also we equip the drone with FPV camera , you can see the situation around it clearly,that also assures flight safety. millimeter wave radar.
4 .The drone body is made of composite material specially for aviation(carbon fibre and aluminium alloy ), which makes the drone
much lighter but much stronger and more durable.
The propeller is made of carbon fibre.
The arms are made of carbon fibre.
The supports are made of aluminium alloy for aviation.
The Streamlined hood, which can reduce wind resistance and energy
consumption， prolonging the flying time.Flexible spraying system, it can reduce vibration and prolong the life of spraying system .you can also equip different nozzles for different crops and applications.

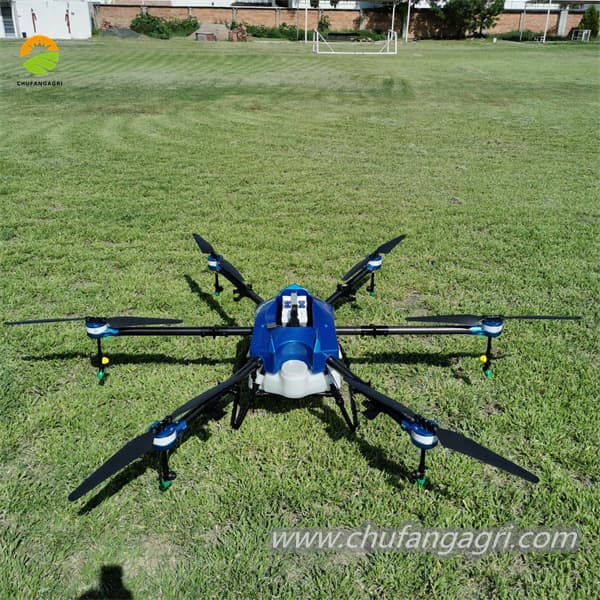

5. Foldable design, the drone is easy to transport.
6. Charger Power: 1000W
Smart charger with communication function, the voltage level is 180V-240V, can match with the voltage level of most countries in the world. Smart lithium battery with the volume of 22000mAh, easy to operate and fix up. One battery can be used about 300 times.
7. Multi-function Integrated Remote Controller ,you can operate the drone easily
