Drone pertanian

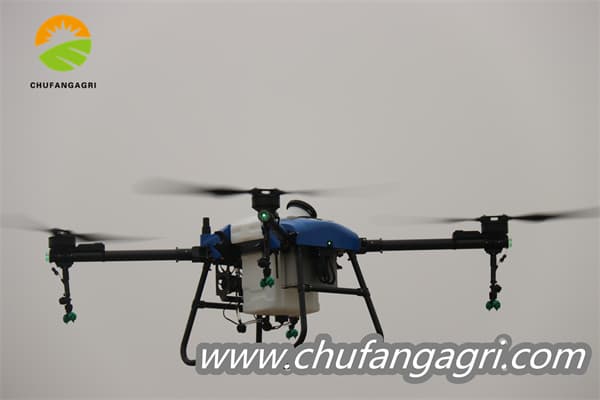

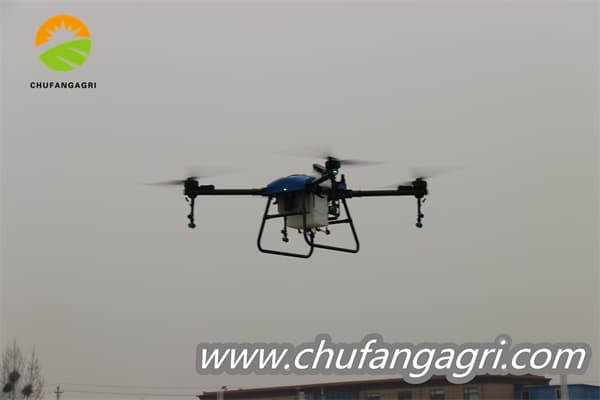

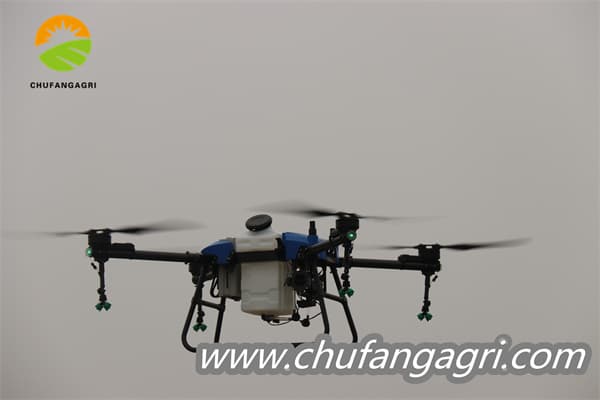

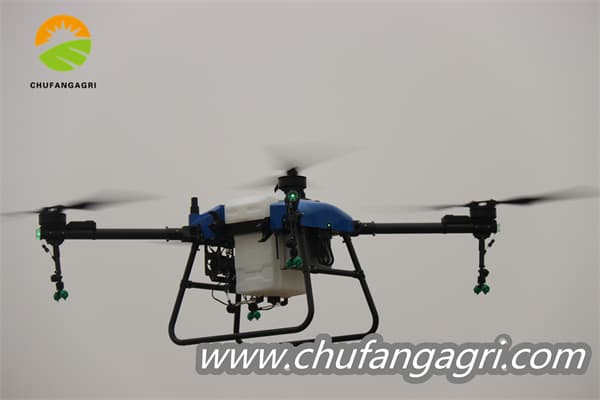

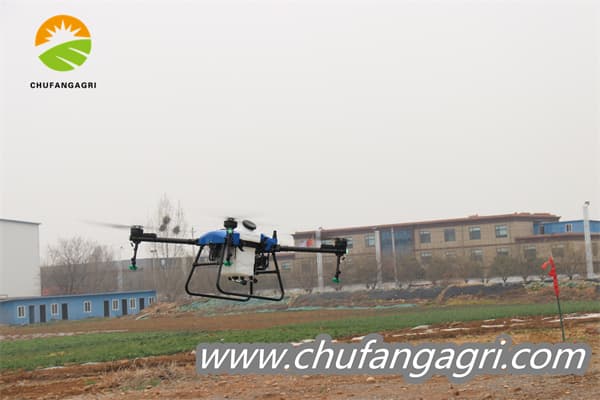

Since 2012, we have been specialized in developing agricultural plant protection drones.We have developed and produced single-rotor unmanned helicopter and multi-rotor intelligent suspended plant protection drone with independent intellectual property rights and international advanced technology. QF TP22 (22L) is one of our latest generation of highly configured drone series.
Its characteristics: easy to carry, especially suitable for precise spraying of pesticides in plots.
Basic parameters
Loads:22L
Operation mode: Manual mode;AB point mode;Fully autonomous spraying mode
Suitable for spraying crops: Any plant
Working hours: 24 hours

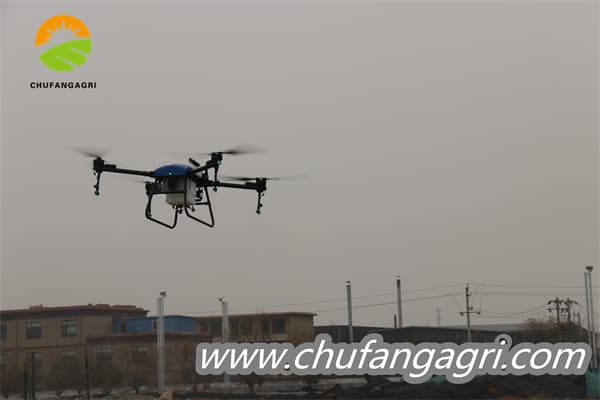

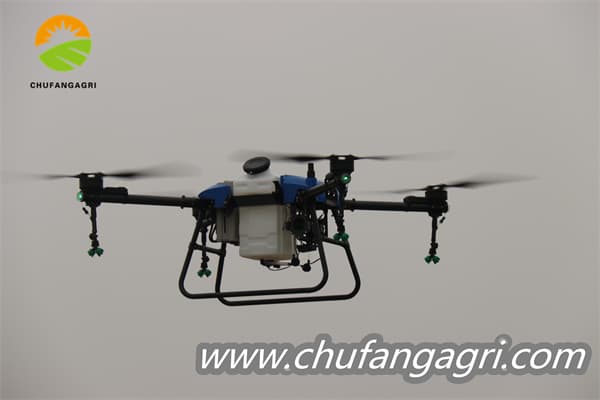

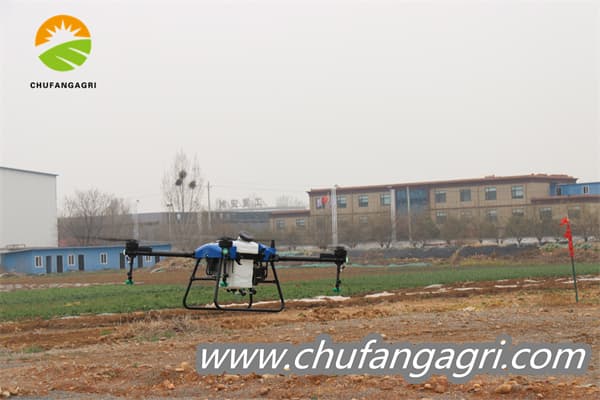

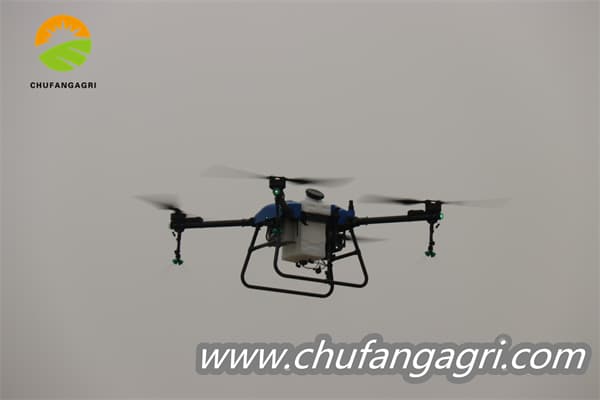

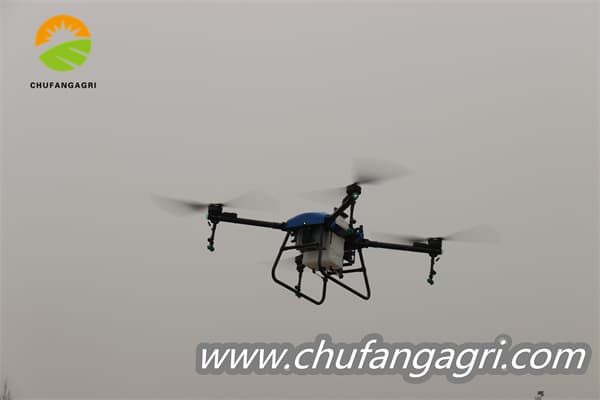

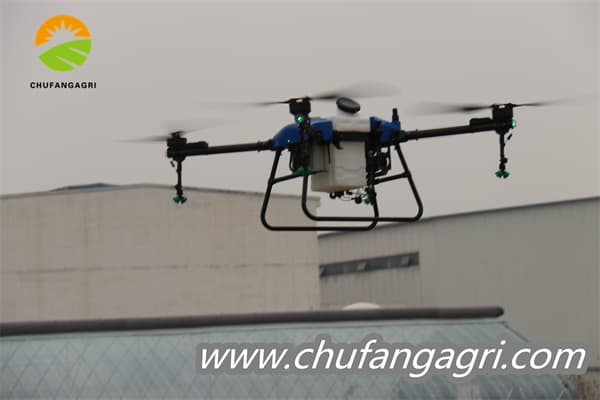

QFTP-22 is our latest electric drone model. It has the characteristics of long endurance, high efficiency, high-precision, easy operation, convenient maintenance, multi-functional, high-cost performance, etc. It has won the favor of all customers.
1、The Main Parameter:
The loading weight: 52KG
Wheelbase：1761mm
Dimension: 1360mmx1360mmx680mm
Endurance Time：20min
Tank Volume：22L
Spray Height:1-3m
Spray Width: 6-8m
Spray flow:4-8L/min
Spraying efficiency: 15-25acres/hour
2、The drone is equipped with auto obstacle avoidance radar which assures flight safety:
The QFTP-22 drone is equipped with millimeter wave radar that has high sensitivity and long detection distance , it can identify obstacles beyond 20 meters, which assure the safe and reliable flight. Also we equip the drone with FPV camera, you can see the situation around it clearly,that also assures flight safety.
3 、 The drone body is made of composite material especially for aviation(carbon fibre and aluminium alloy ), which makes the drone much lighter but much stronger and more durable.

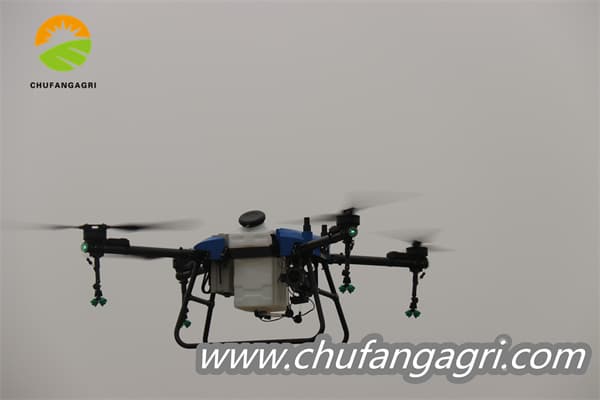

4、It is equipped with multi-function spraying system, so it can be used for different applications.
Flexible spraying system, it can reduce vibration and prolong the life of spraying system .We can also equip different nozzles for different crops and applications.
The drone is equipped with improved nozzle, which can make sure uniform spraying and excellent spraying performance.

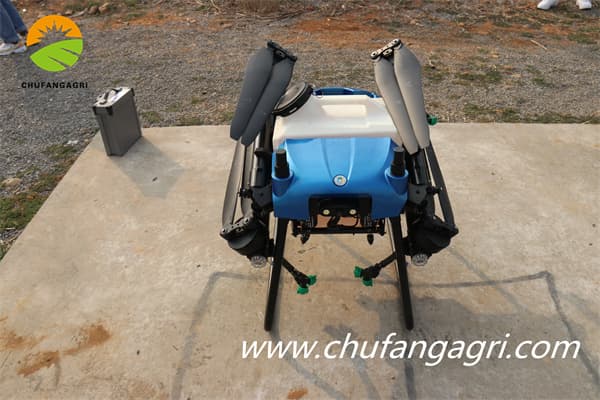

5、 Foldable design, the drone is easy to transport.
