Pesticide spraying drones to control locusts
Since 2012, we have been specialized in developing agricultural plant protection drones.We have developed and produced single-rotor unmanned helicopter and multi-rotor intelligent suspended plant protection drone with independent intellectual property rights and international advanced technology. QF Free Eagle Mini (6L) is one of our latest generation of highly configured drone series.
Its characteristics: easy to carry, especially suitable for precise spraying of pesticides in small plots.
Basic parameters
Loads:6L
Machine weight:16.5KG
Spraying area per battery:1.5 acres
Operation mode: Manual mode;AB point mode;Fully autonomous spraying mode
Suitable for spraying crops: Any plant
Working hours: 24 hours

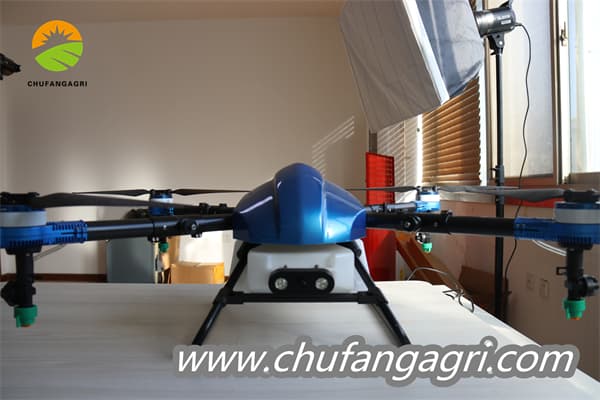

QF Free Eagle MINI
1. The Main Parameter:
The loading weight: 15KG
Wheelbase：1050mm
Dimension: 1330mm*1330mm*320mm
Endurance Time：10min
Tank Volume：6L
Spray Height:1-3m
Spray Width: 3-4m
Spray flow:1.6L/min (max)
Spraying efficiency: 5-7acres/hour
2.Charge Power: 1260W
Battery Volume:8000ma (lithium battery)
3.Flight control system upgrade, the performance is more stable:
- 4 core CPU, super performance, so that MINI has a strong “core”.
- Triple redundant imu, double redundant barometer,if with single hardware problem, it can continue to work.
- Dual shock absorber structure design, with stronger seismic resistance, can easily cope with various complex vibration environment, even if the frame is aging, it still flies stably and reduces the investment of after-sales maintenance.
4.RTK High Precision Location:
- High positioning accuracy, safer flight and more accurate spraying. (X, Y and Z are all centimeter-level)
- Dual antenna guidance, no fear of magnetic interference.
- The latest RTK technology, no need to set up base stations, lower use costs, easier operation.
5.Fully autonomous obstacle avoidance, safer flight:
- Using forward active obstacle avoidance radar, the drone can be set up to automatically adjust the nose along the flight path. With the image transmission module, you can always see the front of the flight, which is safe and reliable.
- High sensitivity, long detection distance, can identify obstacles beyond 20 meters.
- Environmental adaptability, millimeter wave detection, not affected by
- spraying liquid and water mist and light.
6.The body is made of composite material, which is stronger.
7.Streamlined hood, less wind resistance.
8.Double Seal Design to Prevent Agricultural chemical Leakage.9、Double GPS signal system makes sure stable data transmit and flight.
10.Multi-fuction intergrated remote controler (SIYI), easy to operate. Two operation modes for choice.(Manual and autonomous)
11.Drone management & monitoring system.
